Technical Specification:
|
Model |
BZ 20.5/0.08 R.SC-01 |
BZ 20.5/0.12 G.SC-01 |
BZ 20.5/0.12 B.SC-01 |
BZ 20.5/0.08 Y.SC-01 |
BZ 20.5/0.12 W.SC-01 |
|
Color |
RED |
GREEN |
BLUE |
YELLOW |
WHITE |
|
Rated voltage |
DC20.5V |
DC20.5V |
DC20.5V |
DC20.5V |
DC20.5V |
|
Rated power |
0.08W |
0.12W |
0.12W |
0.08W |
0.12W |
|
IP code |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
Technical Characters:
Three series: Piranha Tube series, Surface Mount Tube series, and Straw Hat Tube series, to fully meet different requirements of customers
Mass Production: Automation equipment production, assembly line operation, stable and reliable quality
High Reliability: Adopting full plug-in type circuit design, the products have passed the certifications of CQC and ISO9001 Quality Management System
Good Tolerance: Anti-aging, UV resistance, cold resistance, and anti corrosion
Easy Installation: Simple installation, effective reduction of installation cost

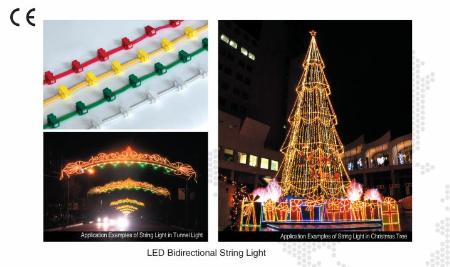

Application Areas:
1. Used for lighting tunnel and lamppost modeling
2. Used for nightscape decoration for streets, parks and the square trees
3. Used for household, mall showcases and display, etc
certification:
